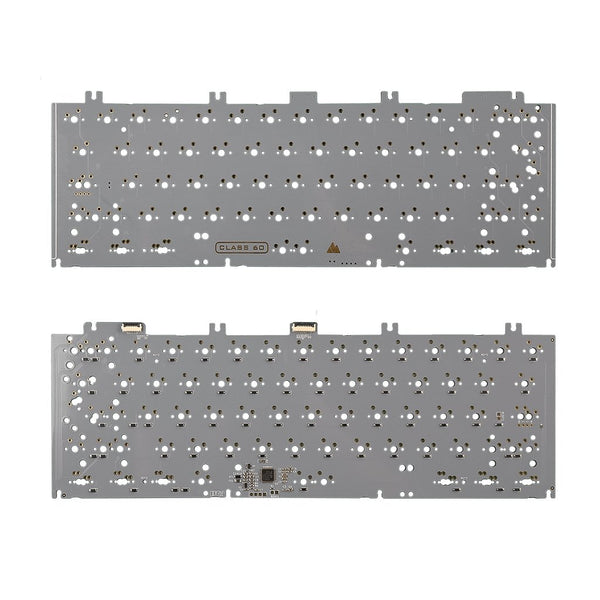

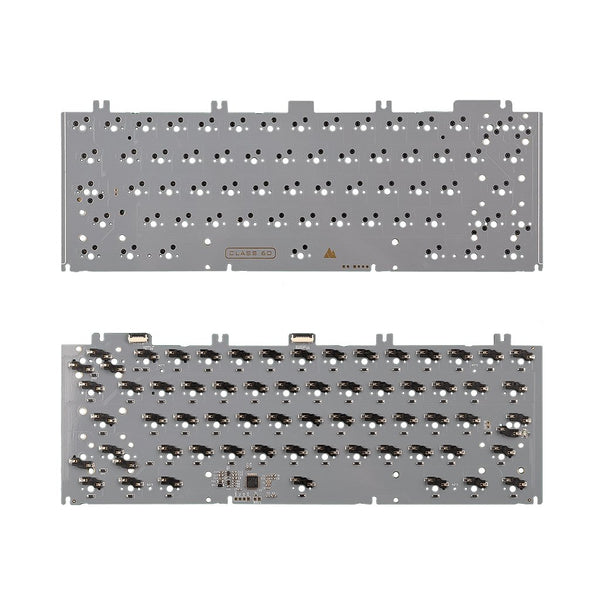

Here are the general steps to install the Class60 Hotswap PCB:
1.First, gather all the necessary components for the installation, including the Class60 Hotswap PCB, stabilizers, switches, keycaps, a compatible case, a soldering iron, and solder.
2.Next, prepare the PCB by inserting stabilizers into the designated locations on the board. Make sure the stabilizers are aligned properly and secure them in place.
3.Insert the switches into the hotswap sockets on the PCB. Gently press the switches in place until you hear a click. Ensure that the switches are fully inserted and that they are aligned properly.
4.Once all switches are inserted, install keycaps onto each switch.
5.Place the PCB into the compatible case and secure it in place with the screws provided.
6.Finally, test the keyboard to ensure that all switches are functioning properly. If any switches are not working, you may need to desolder and re-solder the faulty switch or socket.
